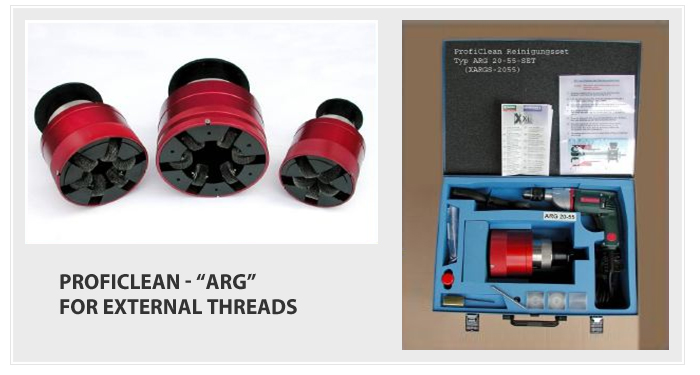

| SET-TYPE | ARG 10-27 | ARG20-55 | ARG 35-70 | ARG 50-90 | ARG90-120 |
| Range | M10 - M27 | M22 - M54 | M36 - M68 | M52 - M88 | M86 - M120 |
| Head-diameter(mm) | Ø100 | Ø150 | Ø160 | Ø185 | Ø212 |
| Normal working-length | 200mm | 200mm | 200mm | 200mm | 200mm |
| Rotation(max.) | 500 i/min | 500 i/min | 500 i/min | 300 i/min | 250 i/min |
| Number of brushes | 3 | 5 | 6 | 6 | 6 |
| Grit-removal(optional) | AS 27 | AS 55 | AS 70 | AS 90 | AS 120 |
| Lateral drives(optional) | DG 55 | DG 90 | |||

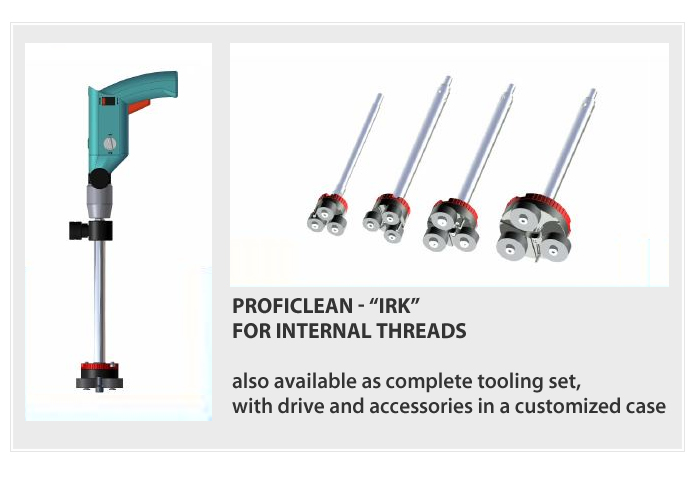

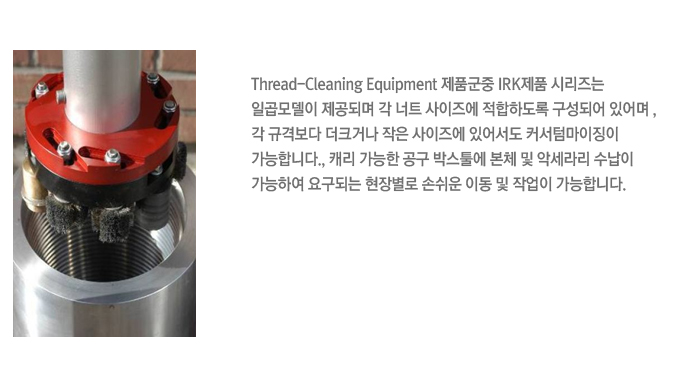

| SET-TYPE | IRK 60-70 | IRK 70-80 | IRK 80-90 | IRK 90-110 | IRK 110-130 | IRK 130-150 | IRK 150-180 |
| Range | M60 - M70 | M70 - M80 | M80 - M90 | M90 - M110 | M110 - M130 | M130 - M150 | M150 - M180 |
| Head-diameter(mm) | Ø51 | Ø60 | Ø70 | Ø80 | Ø90 | Ø115 | Ø145 |
| Normal working-length | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm |
| Number of brushes | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Grit-removal(optional) | AS 20 | AS 20 | AS 20 | AS 20 | AS 20 | AS 20 | AS 20 |
