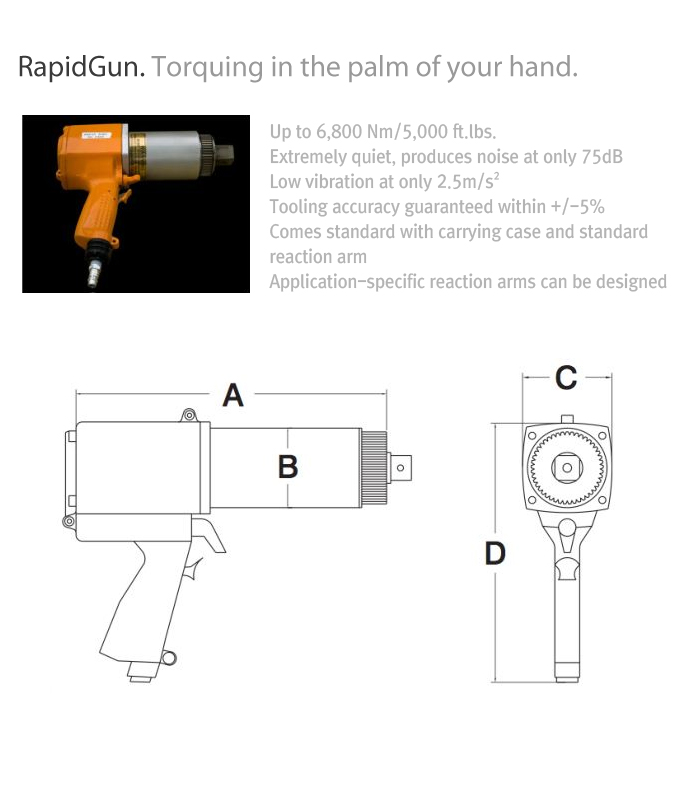

| Model | Square Drive |
Torque | RPM | Dimensions | Weight | |||||||
| Min-Max | a | b | c | |||||||||
| Nm | Ft.lbs | lbs | mm | in | mm | in | mm | in | kg | lbs | ||
| RG-1100 | 3/4" | 200-1100 | 150-800 | 30 | 196 | 7.7 | 72 | 2.8 | 83 | 3.3 | 4.3 | 9.5 |
| 4.3RG-2400 | 1" | 700-2450 | 500-1800 | 10 | 228 | 9.0 | 76 | 3.0 | 83 | 3.3 | 5.6 | 12.5 |
| RG-4000 | 1" | 1400-4050 | 1000-3000 | 14 | 335 | 13.2 | 78 | 3.1 | 93 | 3.7 | 9.2 | 20.5 |
| RG-6800 | 1 1/2" | 2000-6800 | 1500-5000 | 7 | 353 | 13.9 | 101 | 4.0 | 93 | 3.7 | 12.7 | 28.0 |
