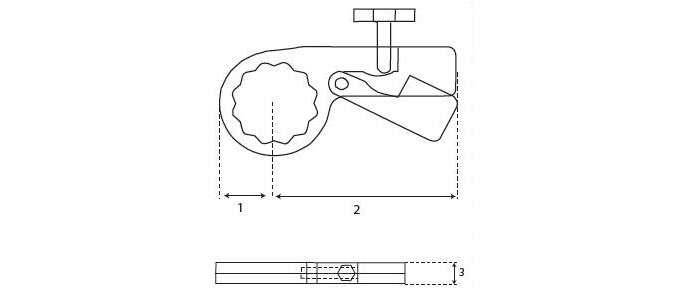

| Part number | Hex Size | Dimensions (in inches) | ||
| 1 | 2 | 3 | ||
| BK14 | 7/8" | .95 | 4.68 | 1/2" |
| BK101 | 1 1/16" | .95 | 4.68 | 1/2" |
| BK104 | 1 1/4" | .95 | 4.68 | 1/2" |
| BK107 | 1 7/16" | 1.13 | 5.25 | 3/4" |
| BK110 | 1 5/8" | 1.24 | 5.25 | 3/4" |
| BK113 | 1 13/16" | 1.35 | 5.25 | 3/4" |
| BK200 | 2" | 1.45 | 5.25 | 3/4" |
| BK203 | 2 3/16" | 1.56 | 5.25 | 3/4" |
| BK206 | 2 3/8" | 1.67 | 5.25 | 3/4" |
| BK209 | 2 9/16" | 1.88 | 7 | 1" |
| BK212 | 2 3/4" | 1.99 | 7 | 1" |
| BK215 | 2 15/16" | 2.19 | 7 | 1" |
| BK302 | 3 1/8" | 2.20 | 7 | 1" |
| BK308 | 3 1/2" | 2.62 | 10.5 | 1 1/2" |
| BK314 | 3 7/8" | 2.84 | 10.5 | 1 1/2" |
| BK401 | 4 1/16" | 2.96 | 10.5 | 1 1/2" |
| BK404 | 4 1/4" | 3.05 | 10.5 | 1 1/2" |
| BK410 | 4 5/8" | 3.27 | 10.5 | 1 1/2" |
| BK415 | 4 15/16" | 3.54 | 12.2 | 2 1/2" |
| BK500 | 5" | 3.69 | 14 | 2 1/2" |
