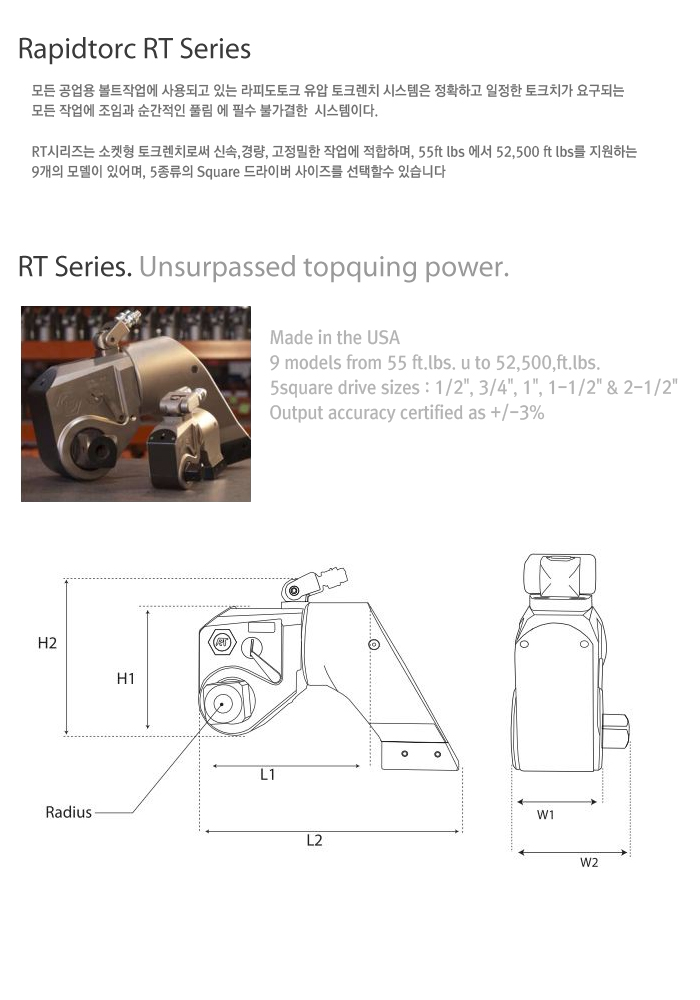

| Model |
Square
Drive |
Torque |
Weight |
Dimensions |
| Ft-lbs |
Mm |
L1 |
L2 |
H1 |
H2 |
Radius |
W1 |
W2 |
| in |
min |
max |
min |
max |
lbs |
kg |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
| RT-.5 |
1/2" |
55 |
397 |
75 |
538 |
0.8 |
0.4 |
3.15 |
81 |
4.87 |
125 |
2.35 |
60.5 |
3.62 |
93 |
0.52 |
13.5 |
1.3 |
33.5 |
1.97 |
50.5 |
| RT-1 |
3/4" |
200 |
1340 |
271 |
1817 |
3.8 |
1.9 |
4.68 |
120 |
7.13 |
183 |
3.52 |
90.5 |
4.75 |
122 |
0.9 |
23 |
1.95 |
50 |
2.76 |
71 |
| RT-3 |
1" |
480 |
3230 |
651 |
4379 |
7.8 |
3.9 |
6.04 |
155 |
9.24 |
237 |
4.68 |
120 |
6.08 |
156 |
1.28 |
33 |
2.59 |
66.5 |
3.72 |
95.5 |
| RT-5 |
1-1/2" |
835 |
5590 |
1132 |
7578 |
15 |
7.5 |
7.21 |
185 |
11.23 |
288 |
5.63 |
144.5 |
7.05 |
181 |
1.44 |
37 |
3.12 |
80 |
4.9 |
126 |
| RT-8 |
1-1/2" |
1200 |
8000 |
1627 |
10845 |
23 |
11.5 |
7.85 |
202 |
12.49 |
321 |
6.42 |
164.6 |
8. |
213.36 |
1.62 |
41 |
3.48 |
88 |
4.95 |
126 |
| RT-10 |
1-1/2" |
1755 |
11520 |
2379 |
15617 |
26.8 |
13.4 |
9 |
232 |
13.9 |
375 |
7.2 |
186 |
9.3 |
239 |
1.87 |
48 |
3.9 |
100 |
5.5 |
142.5 |
| RT-20 |
2-1/2" |
2960 |
19760 |
4013 |
26787 |
36 |
18 |
10.2 |
259 |
16.55 |
420 |
8.5 |
216 |
9.9 |
251 |
2.17 |
55.11 |
4.7 |
119 |
6.7 |
170 |
| RT-25 |
2-1/2" |
3960 |
25890 |
5368 |
35096 |
62 |
31 |
12 |
310 |
18.4 |
473 |
9.1 |
234 |
11 |
282 |
2.37 |
61 |
5.2 |
134 |
7.4 |
191 |
| RT-50 |
2-1/2" |
7875 |
52500 |
10675 |
71169 |
96 |
48 |
15.2 |
390 |
23.9 |
615 |
11.4 |
294 |
13.4 |
344 |
30.8 |
79 |
6.5 |
167 |
8.9 |
228 |
