| Model |
Ratchet Link
Hex size |
Torque |
Weight |

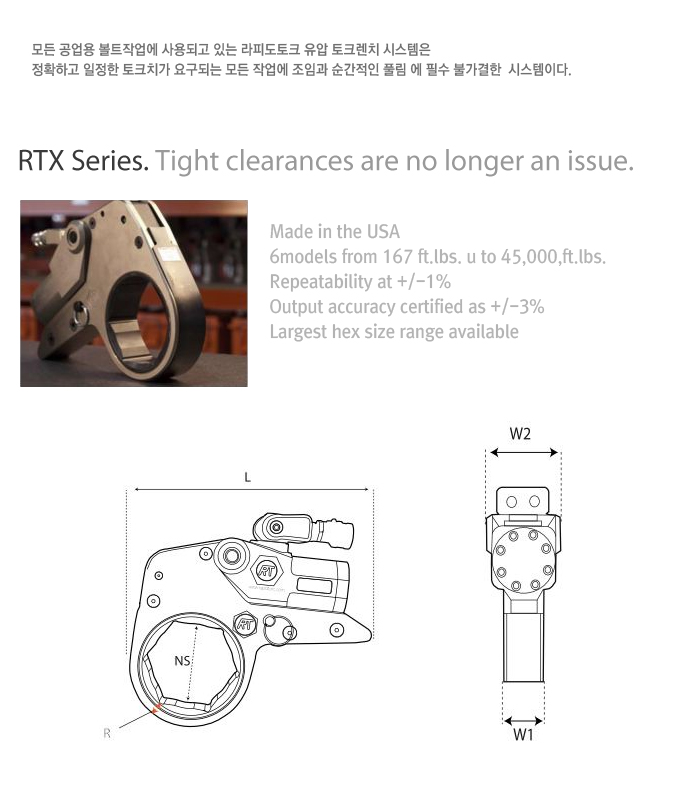

Dimensions |
| Ft-lbs |
Nm |
L |
NS |
R |
W1 |
W2 |
| in |
mm |
min |
max |
min |
max |
lbs |
kg |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
| RTX-2 |
3/4~2 3/4" |
19.65 |
255 |
1710 |
346 |
2318 |
4.5 |
2 |
7.2 |
183 |
3/4~2 3/4" |
19.65 |
0.35 |
9 |
1.26 |
32 |
1.92 |
49 |
| RTX-4 |
1~31/2 |
25.85 |
580 |
3855 |
786 |
5226 |
9.7 |
4.4 |
9.7 |
248 |
1~31/2 |
32.80 |
0.47 |
12 |
1.65 |
42 |
2.56 |
65 |
| RTX-8 |
13/4~41/2 |
46-105 |
1143 |
8151 |
1549 |
11049 |
19.5 |
9 |
12.1 |
308 |
13/4~41/2 |
46-100 |
0.59 |
15 |
2.08 |
53 |
3.22 |
82 |
| RTX-14 |
21/2~53/4 |
60-135 |
2010 |
13400 |
2725 |
18165 |
33 |
15 |
14.6 |
372 |
21/2~53/4 |
50-120 |
0.72 |
18.5 |
2.48 |
63 |
3.89 |
99 |
| RTX-18 |
31/2~51/2 |
75-140 |
2676 |
17845 |
3628 |
24191 |
51 |
23 |
15.5 |
393 |
31/2~51/2 |
75-140 |
.87 |
22.2 |
2.75 |
70 |
4.37 |
111 |
| RTX-30 |
31/2-61/2 |
90-165 |
4770 |
31800 |
6466 |
43108 |
78 |
35.5 |
18 |
457 |
31/2-61/2 |
90-155 |
1 |
25.4 |
3.26 |
83 |
5.28 |
132 |
